HiPerSeal® - Spring Energized Seal

Type HD

Shaft seal for rotary application with helical spring.

  • Suitable for intermittent rotary only
  • Excellent sealability under low pressure
  • Friction Rating: High
  • Standard Materials: Carbon fiber Filled PTFE material code: 5
  • (Other materials are available for special operating conditions. Our application engineers will be glad to advise you.)

Application Range

  • Pressure: ≤ 350 Bar
  • Sliding speed: ≤ 0.5 m/s
  • Temperature: -150°C ~ 225°C

Common Applications

Oil & Gas Industry

Semi-Conductor Industry

Transportation Industry

Guidelines for the Selection of Special Sizes

Unit: mm
There are no standard groove dimension for this profile. You may fill your information in the inquiry form.
Material
code
ReferenceCompoundColorTemp. °C
(MIN.)
Temp. °C
(MAX.)
ApplicationCharacteristicsProducts
101TVIRGIN PTFEWHITE-190220• CHEMICAL INDUSTRY
• SEMI-CONDUCTOR
• FOOD INDUSTRY
• HIGH CHEMICAL RESISTANCE
• LOW COEFFICIENT OF FRICTION
• BACK-UP RINGS
• HIPERSEALS
203TPTFE + CARBON
+ GRAPHITE
BLACK-190315• HIGH MECHANICAL STRESS
• WATER/OIL HYDRAULICS
• ROTARY SEALING
• HIGH WEAR RESISTANCE
• CREEP RESISTANCE
• GLIDE RINGS
• PNEUMATIC GUIDANCE TAPE
• BACK-UP RINGS
• HIPERSEAL
302TPTFE + BRONZEGREEN-156260• HIGH MECHANICAL STRESS
• HYDRAULIC APPLICATIONS
• OUTSTANDING WEAR RESISTANCE
• EXTRUSION RESISTANCE
• CREEP RESISTANCE
• GLIDE RINGS
• HYDRAULIC GUIDANCE TAPE
• BACK-UP RINGS
4UPEUHMW-PEWHITE-20080• HYDRAULIC APPLICATIONS• OUTSTANDING WEAR RESISTANCE
• GOOD OXIDATION RESISTANCE
• OUTSTANDING EXTRUSION RESISTANCE
• OUTSTANDING SEALING
UNDER LOW PRESSURE
• BACK-UP RINGS
• SPRING ENERGIZED SEALS
4G4GULTRAGOLD®YELLOWCRYOGENIC93• HYDRAULIC APPLICATIONS• OUTSTANDING WEAR RESISTANCE
• SELF-LUBRICATING PROPERITIES
• OUTSTANDING EXTRUSION
RESISTANCE
• OUTSTANDING PERFORMANCE
UNDER CRYOGENIC APPLICATION
• HIPERSEALS
505TPTFE + CARBON FIBERGREY-260310• WATER HYDRAULICS
• SHORT STROKES WITH
HIGH OPERATION FREQUENCY
• VERY GOOD WEAR RESISTANCE
PROPERTIES IN WATER
• EXCELLENT COMPRESSIVE STRENGTHS
• DYNAMIC APPLICATIONS AT HIGH SPEED
• GLIDE RINGS
• HIPERSEALS
606TPTFE + GLASS FIBERWHITE-190290• MEDIUM-DUTY HYDRAULIC
APPLICATIONS
• HIGH CHEMICAL RESISTANCE
• HIGH CREEP RESISTANCE
• ELECTRICAL PROPERTIE LIKE
VIRGIN PTFE
• GLIDE RINGS
• BACK-UP RINGS
• GUIDE RINGS
• GASKETS
707TPTFE + EKONOLBEIGE-260320• MEDIUM MECHANICAL STRESS
• SOFTER SEALING SURFACES
• ROTARY SEALING
• LIMITED CHEMICAL RESISTANCE
• LIMITED USE IN HOT WATER
• HIPERSEALS
• ROTARY GLIDE RINGS
• LIP SEALS
808TPTFE +
E-CARBON
BLACK-190290• MEDIUM MECHANICAL STRESS
• HARD SEALING SURFACES
• WATER/OIL EMULSIONS
• CHEMICAL RESISTANCE
LIMITED BY CARBON
• HIPERSEALS
909TPTFE + GRAPHITEDARK GREY-190260• LOW MECHANICAL STRESS
• SOFT SEALING SURFACES
• CHEMICAL RESISTANCE
LIMITED GRAPHITE
• HIPERSEALS
1010TPTFE + GLASS FIBER + MOS2GREY-190260• MEDIUM MECHANICAL STRESS
• MEDIUM-DUTY HYDRAULIC
APPLICATIONS
• HIGH CREEP STRENTH
• HIGH CHEMICAL RESISTANCE
• OUTSTANDING WEAR RESISTANCE
• ELECTRICAL PROPERTIES LIKE
VIRGIN PTFE
• HIPERSEALS
• ROTARY SEALS
• BACK-UP RINGS
PE01KPEEKBEIGE/
BLACK
-73316• HYDRAULIC APPLICATIONS• GOOD CHEMICAL RESISTANCE
• GOOD WEAR RESISTANCE
• HIGH MAXIMUM USE TEMPERATURE
• LOW FLAMMABILITY
• EXCELLENT ELECTRICAL PROPERTIES
• GOOD RADIATION RESISTANCE
• BACK-UP RINGS
• HIPERSEALS

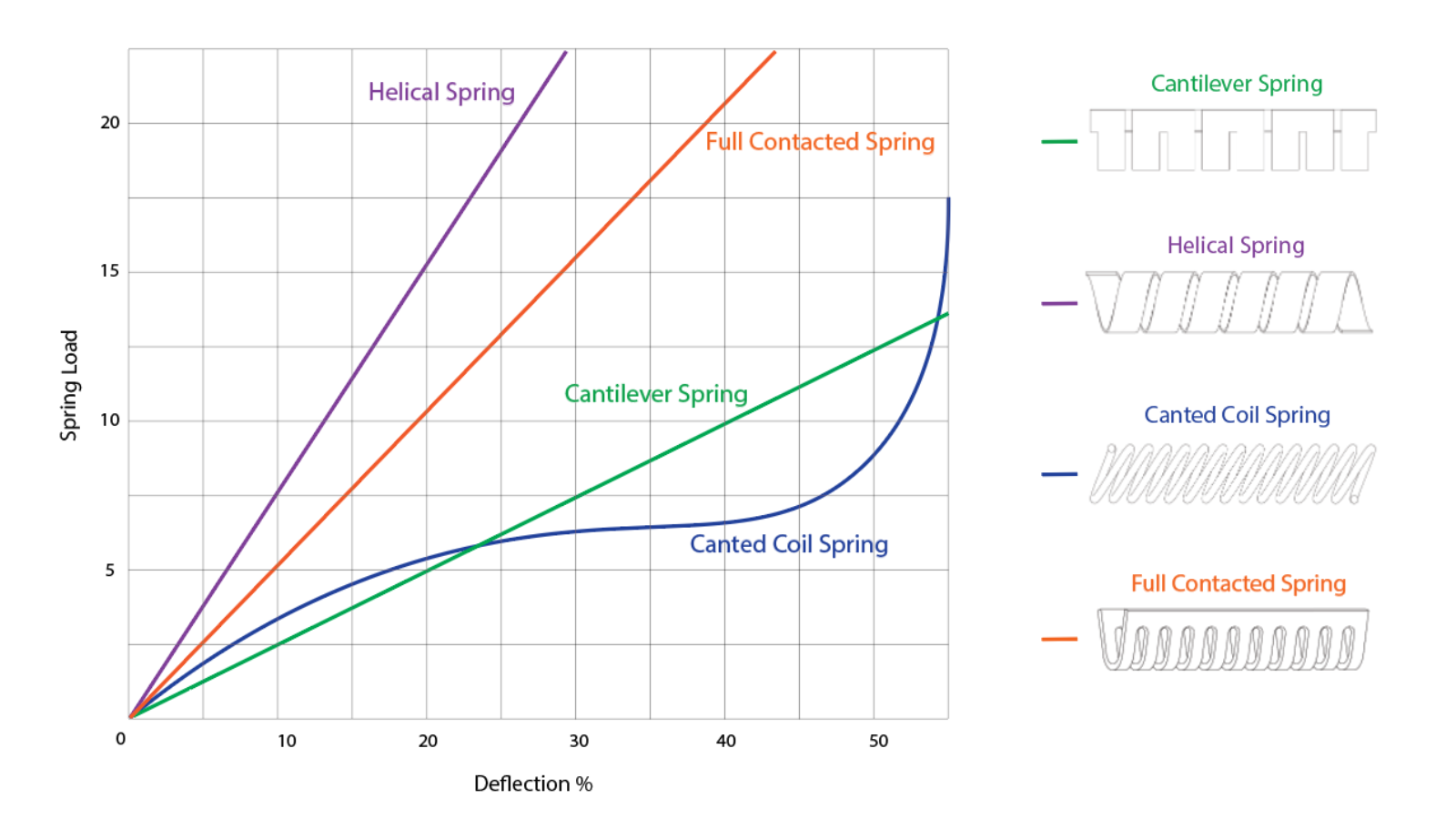

Spring
CodeMaterialCantilever SpringCanted Coil SpringHelical SpringFull Contacted Spring
1301 Stainless SteelStandardStandard
2Hastelloy® C276
317-7 PH Stainless SteelStandard
4lnconel® 718
5Elgiloy®
6302 Stainless SteelStandard
7304 Stainless Steel
8316 Stainless Steel
