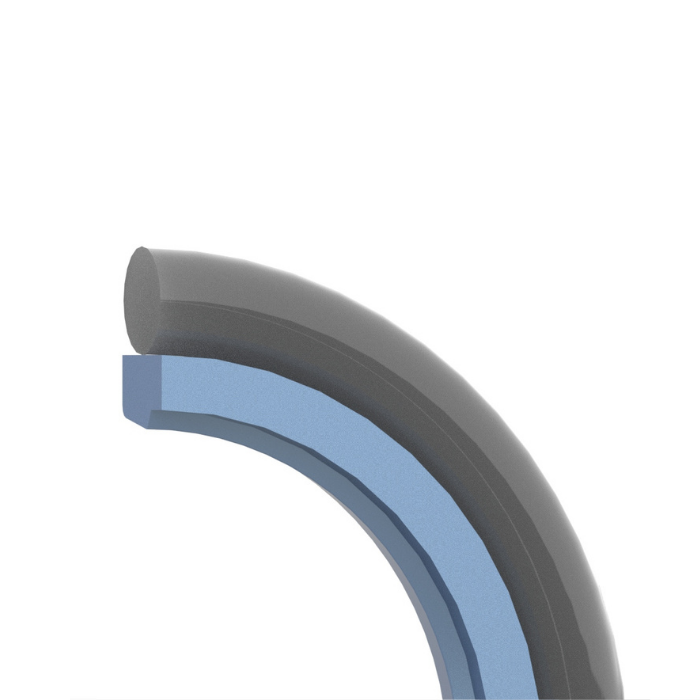

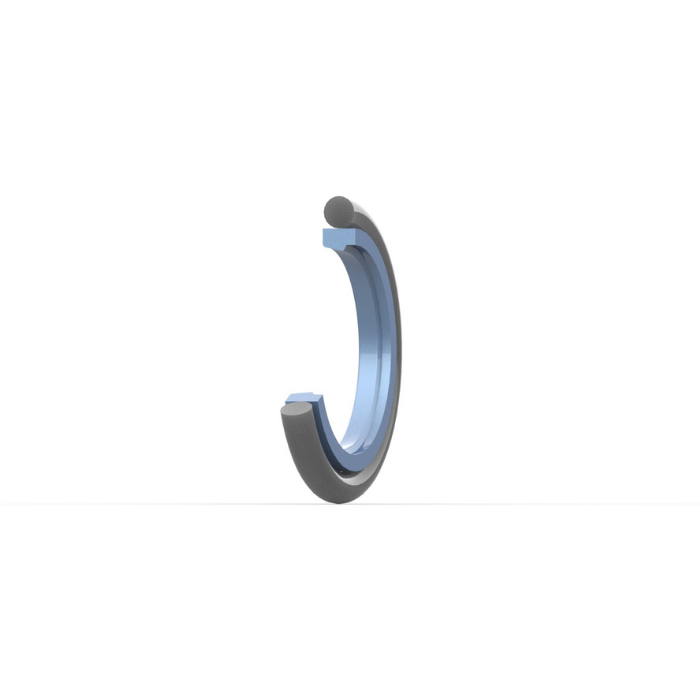

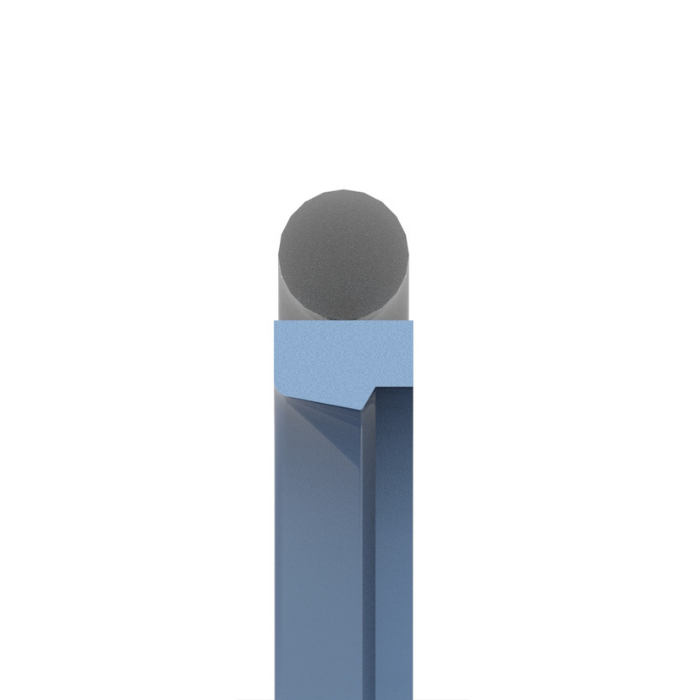

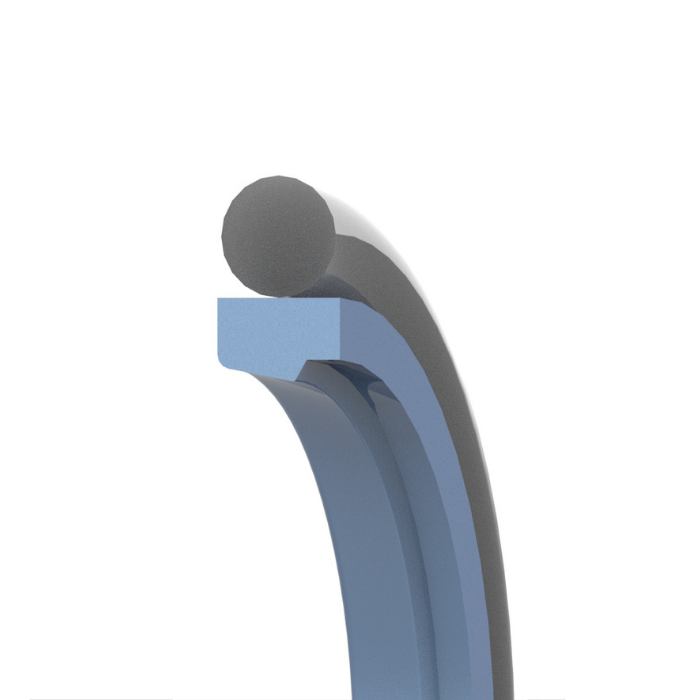

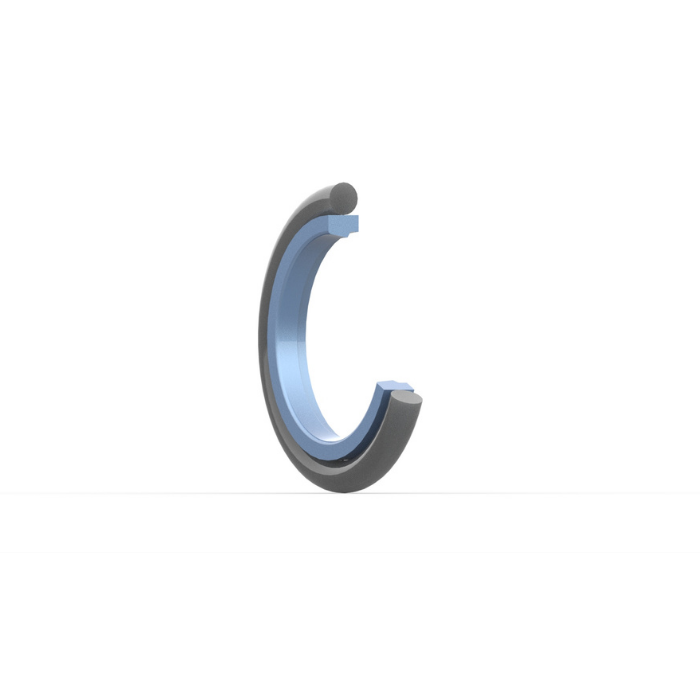

- Single seal is designed for uni-directional pressurization rods in hydraulic applications
- Suitable for double-acting pistons in hydraulic cylinders if two sealing sets are arranged
- Typical applications include control cylinders, servo-controlled systems, machine tools, and construction machinery.
- Low wear and high extrusion resistance
Application Range
- Pressure: ≦ 400 bar
- Temperature: -40℃ ~ 200℃
- Speed: ≦ 4 m/s
- Standard Material: Bronze filled PTFE
- (Note: Other materials are available for specified conditions)
Common Applications
Petrochemical Industry
Oil & Gas Industry
Mining Industry
Steel Industry
Infrastructure Industry
Guidelines for the Selection of Special Sizes

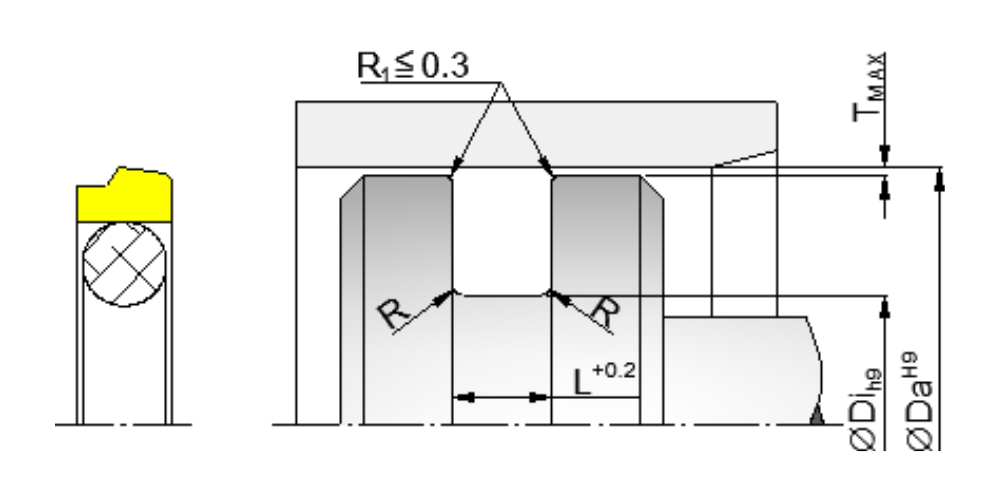

Unit: mm| Rod diameter | Groove Bottom | Groove Width | Radius | Gap (100 bar) | Gap (200 bar) | Gap (400 bar) | Gland code | O-Ring C.S. |
| ⌀ Di | ⌀ Da | L | R | T | T | T | ||
| 4 ~ 7.9 | Di + 4.9 | 2.2 | 0.5 | 0.3 | 0.2 | 0.1 | A | 1.78 |
| 8 ~ 18.9 | Di + 7.3 | 3.2 | 0.5 | 0.4 | 0.25 | 0.15 | B | 2.62 |
| 19 ~37.9 | Di + 10.7 | 4.2 | 0.5 | 0.4 | 0.25 | 0.15 | C | 3.53 |
| 38 ~ 199.9 | Di + 15.1 | 6.3 | 0.9 | 0.5 | 0.3 | 0.2 | D | 5.33 |
| 200 ~ 255.9 | Di + 20.5 | 8.1 | 0.9 | 0.5 | 0.3 | 0.2 | E | 6.99 |
| 256 ~ 649.9 | Di + 24.0 | 8.1 | 0.9 | 0.6 | 0.35 | 0.25 | F | 6.99 |
| 650 ~ 999.9 | Di + 27.3 | 9.5 | 0.9 | 0.7 | 0.4 | 0.3 | G | 8.4 |
| 1000.0 ~ | Di + 38.0 | 13.8 | 0.9 | 0.7 | 0.4 | 0.3 | H | 12.00 |
| Material code | Reference | Compound | Color | Temp. °C (MIN.) | Temp. °C (MAX.) | Application | Characteristics | Products |
| 1 | 01T | VIRGIN PTFE | WHITE | -190 | 220 | • CHEMICAL INDUSTRY • SEMI-CONDUCTOR • FOOD INDUSTRY | • HIGH CHEMICAL RESISTANCE • LOW COEFFICIENT OF FRICTION | • BACK-UP RINGS • HIPERSEALS |
| 2 | 03T | PTFE + CARBON + GRAPHITE | BLACK | -190 | 315 | • HIGH MECHANICAL STRESS • WATER/OIL HYDRAULICS • ROTARY SEALING | • HIGH WEAR RESISTANCE • CREEP RESISTANCE | • GLIDE RINGS • PNEUMATIC GUIDANCE TAPE • BACK-UP RINGS • HIPERSEAL |
| 3 | 02T | PTFE + BRONZE | GREEN | -156 | 260 | • HIGH MECHANICAL STRESS • HYDRAULIC APPLICATIONS | • OUTSTANDING WEAR RESISTANCE • EXTRUSION RESISTANCE • CREEP RESISTANCE | • GLIDE RINGS • HYDRAULIC GUIDANCE TAPE • BACK-UP RINGS |
| 4 | UPE | UHMW-PE | WHITE | -200 | 80 | • HYDRAULIC APPLICATIONS | • OUTSTANDING WEAR RESISTANCE • GOOD OXIDATION RESISTANCE • OUTSTANDING EXTRUSION RESISTANCE • OUTSTANDING SEALING UNDER LOW PRESSURE | • BACK-UP RINGS • SPRING ENERGIZED SEALS |
| 4G | 4G | ULTRAGOLD® | YELLOW | CRYOGENIC | 93 | • HYDRAULIC APPLICATIONS | • OUTSTANDING WEAR RESISTANCE • SELF-LUBRICATING PROPERITIES • OUTSTANDING EXTRUSION RESISTANCE • OUTSTANDING PERFORMANCE UNDER CRYOGENIC APPLICATION | • HIPERSEALS |
| 5 | 05T | PTFE + CARBON FIBER | GREY | -260 | 310 | • WATER HYDRAULICS • SHORT STROKES WITH HIGH OPERATION FREQUENCY | • VERY GOOD WEAR RESISTANCE PROPERTIES IN WATER • EXCELLENT COMPRESSIVE STRENGTHS • DYNAMIC APPLICATIONS AT HIGH SPEED | • GLIDE RINGS • HIPERSEALS |
| 6 | 06T | PTFE + GLASS FIBER | WHITE | -190 | 290 | • MEDIUM-DUTY HYDRAULIC APPLICATIONS | • HIGH CHEMICAL RESISTANCE • HIGH CREEP RESISTANCE • ELECTRICAL PROPERTIE LIKE VIRGIN PTFE | • GLIDE RINGS • BACK-UP RINGS • GUIDE RINGS • GASKETS |
| 7 | 07T | PTFE + EKONOL | BEIGE | -260 | 320 | • MEDIUM MECHANICAL STRESS • SOFTER SEALING SURFACES • ROTARY SEALING | • LIMITED CHEMICAL RESISTANCE • LIMITED USE IN HOT WATER | • HIPERSEALS • ROTARY GLIDE RINGS • LIP SEALS |
| 8 | 08T | PTFE + E-CARBON | BLACK | -190 | 290 | • MEDIUM MECHANICAL STRESS • HARD SEALING SURFACES • WATER/OIL EMULSIONS | • CHEMICAL RESISTANCE LIMITED BY CARBON | • HIPERSEALS |
| 9 | 09T | PTFE + GRAPHITE | DARK GREY | -190 | 260 | • LOW MECHANICAL STRESS • SOFT SEALING SURFACES | • CHEMICAL RESISTANCE LIMITED GRAPHITE | • HIPERSEALS |
| 10 | 10T | PTFE + GLASS FIBER + MOS2 | GREY | -190 | 260 | • MEDIUM MECHANICAL STRESS • MEDIUM-DUTY HYDRAULIC APPLICATIONS | • HIGH CREEP STRENTH • HIGH CHEMICAL RESISTANCE • OUTSTANDING WEAR RESISTANCE • ELECTRICAL PROPERTIES LIKE VIRGIN PTFE | • HIPERSEALS • ROTARY SEALS • BACK-UP RINGS |
| PE | 01K | PEEK | BEIGE/ BLACK | -73 | 316 | • HYDRAULIC APPLICATIONS | • GOOD CHEMICAL RESISTANCE • GOOD WEAR RESISTANCE • HIGH MAXIMUM USE TEMPERATURE • LOW FLAMMABILITY • EXCELLENT ELECTRICAL PROPERTIES • GOOD RADIATION RESISTANCE | • BACK-UP RINGS • HIPERSEALS |
| O Ring Code | Compound | Parjet Compound | Hardness (Shore A) | Temperature Range |
| 1 | NBR | N100A-70 | 70 ± 5 | -40°C ~ 100°C |
| 2 | Viton | V100A-75 | 75 ± 5 | -25°C ~ 250°C |
| 3 | NBR | N100A-90 | 90 ± 5 | -30°C ~ 100°C |
| 4 | Viton | V100A-90 | 90 ± 5 | -25°C ~ 250°C |
| 5 | NBR | N100A-80 | 80 ± 5 | -30°C ~ 100°C |
| 6 | NBR | N134A-70 | 70 ± 5 | -40°C ~ 100°C |
| 7 | EPDM | E100A-70 | 70 ± 5 | -40°C ~ 100°C |
| 8 | Silicone | S100A-70 | 70 ± 5 | -55°C ~ 210°C |
| 9 | HPU | P100A-93 | 93 ± 5 | -40°C ~ 110°C |
