Mechanical Seal

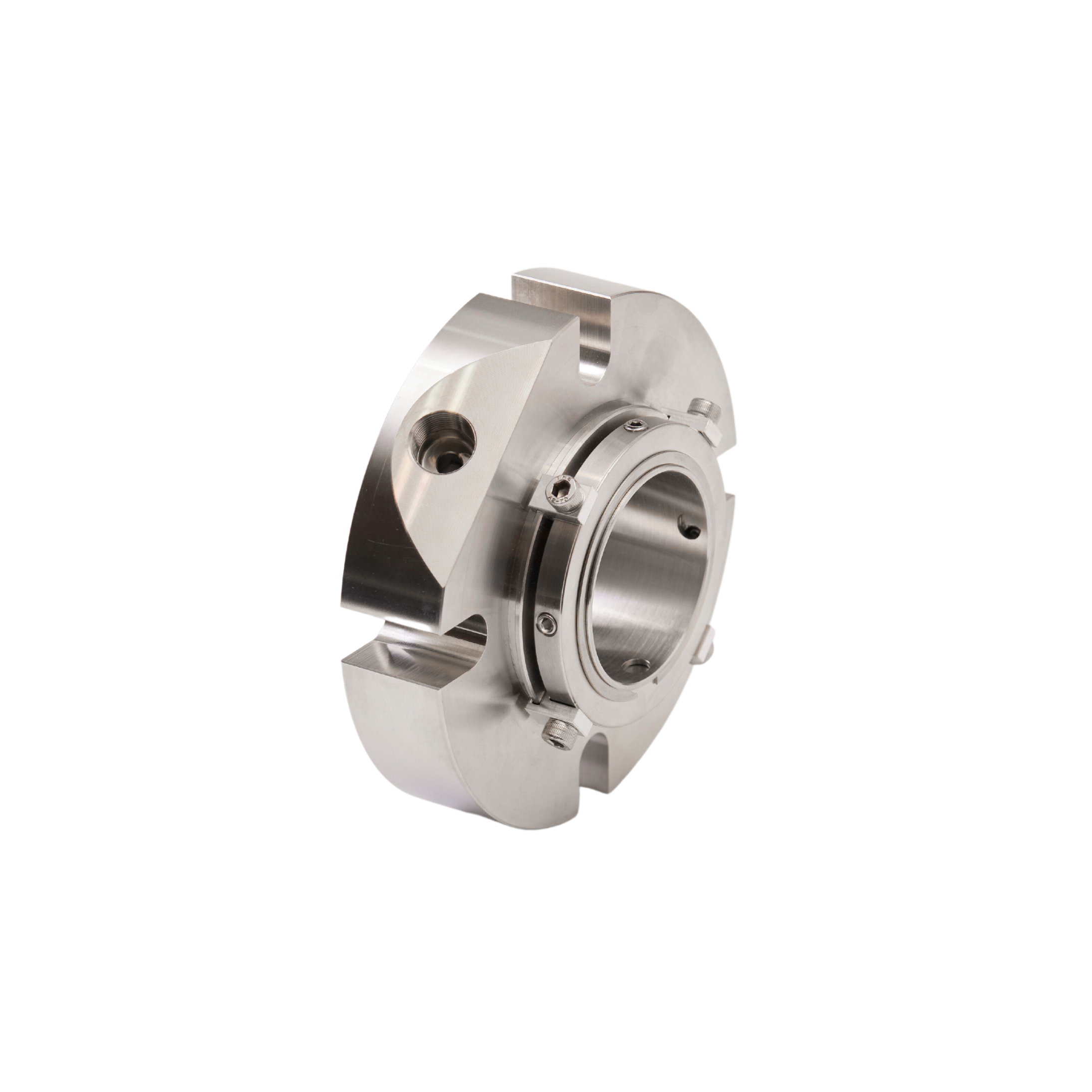

ParAce®

Single Cartridge Seal for Pump, Compressor...

CATALOGUE

ParMix®ParDual®

Single Seal
Balanced
Multiple Springs Stationary
Cartridge Seal
Shower Flushing
For DIN&ISO Pump

Application Range

Pressure : FV~25bar
Temperature : -20~200°C
Sliding Velocity : Vg=Max 16m/s
Shaft Size : Ø25(1")~Ø100mm(4")
For further details, please contact Parjet.

Common Applications

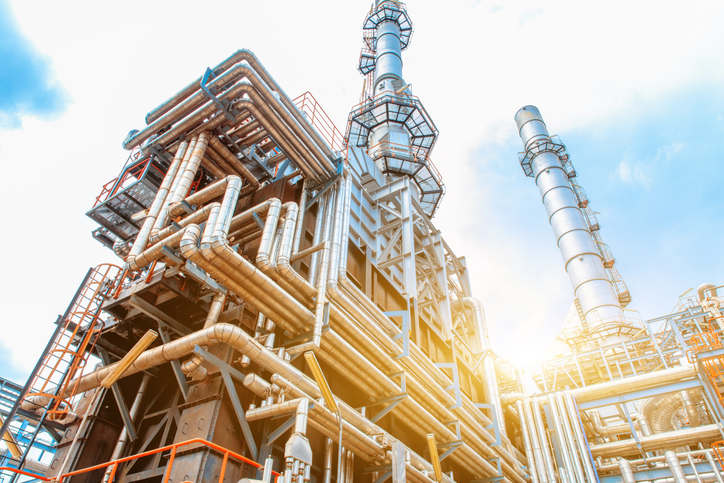

Petrochemical Industry

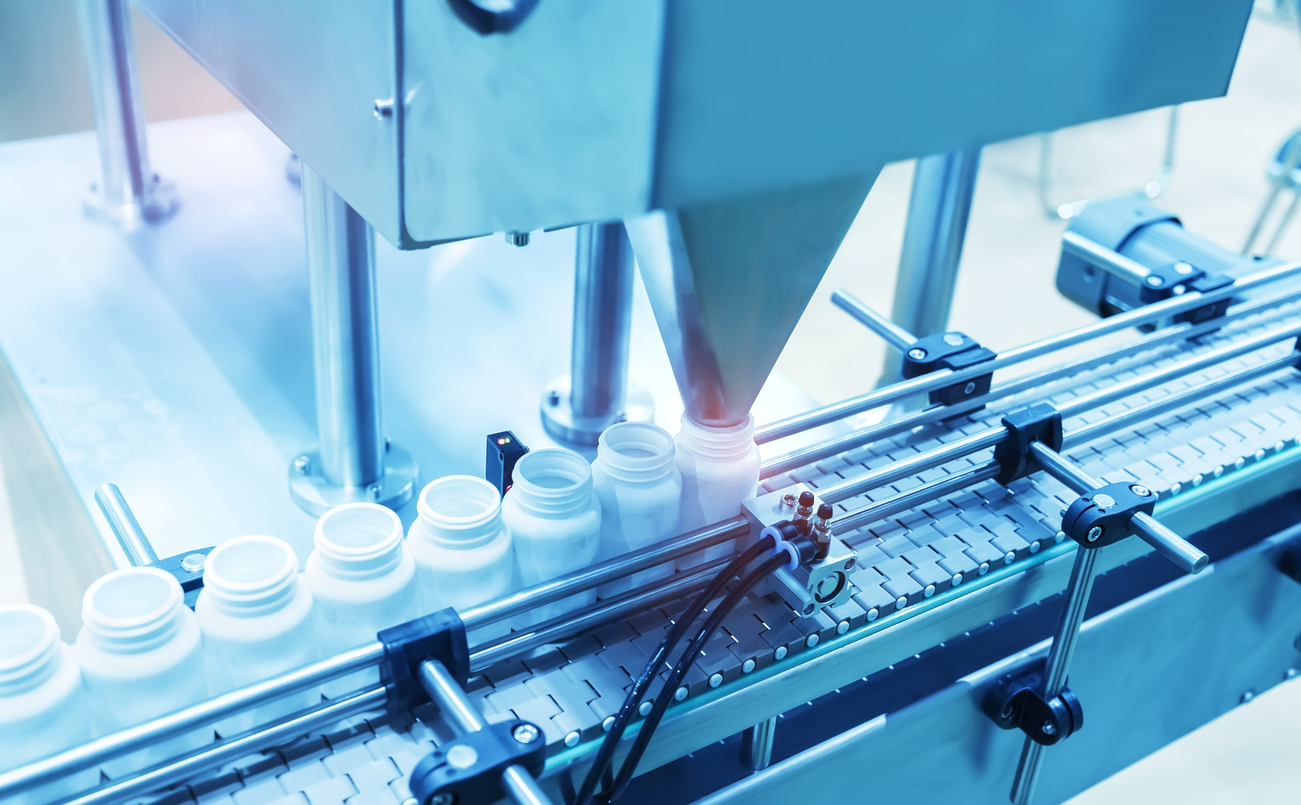

Pharmaceutical Industry

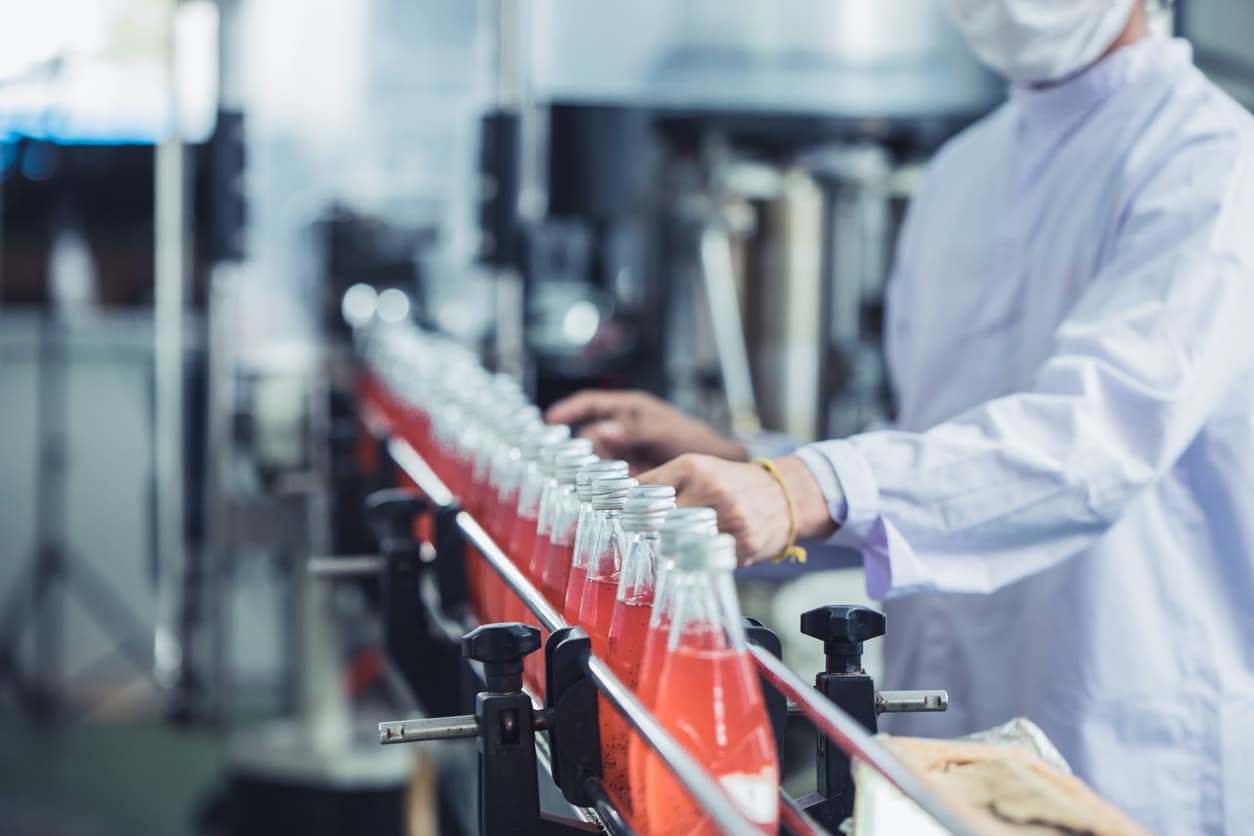

Food and Beverage Industry

Guidelines for the Selection of Special Sizes

Unit: mm

⌀d	⌀D1	⌀D2 (Min.)	⌀D2 (Max.)	⌀D3	L	L1	L2	L3	L4	L5	W
25	43	44	51	108	65	18	47	30	16	62	12
28	45	47	55	108	65	18	47	30	16	65	12
30	46	49	57	108	65	18	47	30	16	67	12
35	50	52	61	118	65	18	47	30	16	72	14
38	55	57	64	128	65	18	47	30	16	75	14
40	57	59	66	128	65	18	47	30	16	80	14
43	59	61	68	138	65	18	47	30	16	80	14
45	60	62	70	138	65	18	47	30	16	82	14
50	68	70	78	138	65	18	47	30	15	90	16
55	70	74	80	138	65	18	47	30	15	90	16
60	78	82	88	148	65	18	47	30	15	102	18
65	84	87	92	158	65	18	47	30	16	109	18
70	92	95	105	168	65	18	47	30	15	118	18
75	96	99	110	178	65	18	47	30	18	120	18
80	104	106	115	188	70	20	50	33	20	125	18
85	109	111	118	198	70	20	50	33	20	128	22
90	113	116	122	198	70	20	50	33	20	138	22
95	116	120	124	198	70	20	50	33	20	138	22
100	124	127	135	208	70	20	50	33	20	148	22

Seal Face : S-Sic x Carbon (Max0.3 wt%)
S-Sic x S-Sic (Max10wt%)
Metal : SUS316 (Special Material upon Request.)
O Ring : Viton (Standard), EPDM, Chemfluor F668 (FFKM)
